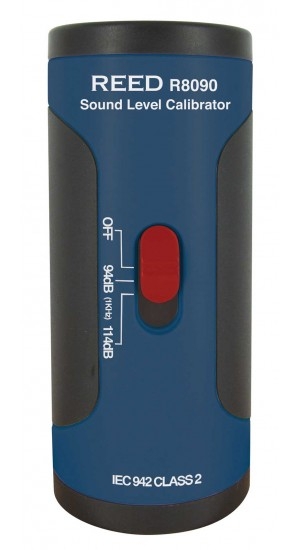

REED R8090 Sound Level Calibrator UAE

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : R8090

To evaluate the accuracy of your sound level metre, this sound calibrator generates a consistent acoustic signal with a set frequency and amplitude. The R8090 can be used with any 1/2 inch device "microphones with a large diameter To check the accuracy of a sound level metre, it generates a stable acoustic signal with a predetermined frequency and amplitude. Sound metres with 1/2 inch holes can be accommodated "microphones with a large diameter Simply insert the calibrator on the microphone, turn on the sound level metre, and adjust the volume. IEC 942 Class 2 compliance

Specification
Features
Catalog

Specifications

Details

Output Sound Pressure

2 levels (94dB and 114dB)

Accuracy

±0.5dB

Output Frequency Range (Hz)

1000Hz ±4%

Power Supply

9V Battery

Product Certifications

CE

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Operating Humidity Range

0 to 80%

Dimensions

4.7 x 2 x 1.7" (120 x 51 x 43 mm)

Weight

4.6oz (130g)

SIMILAR PRODUCTS

Part Number : SV 34B Class 2 Sound Calibrator | Sound Pressure Level (SPL) 114 dB

VIEW ADD TO CART

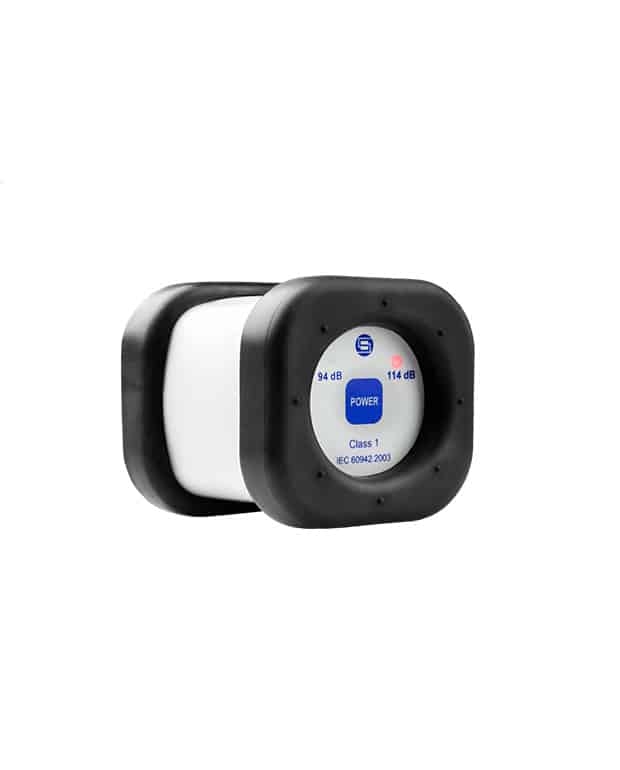

Part Number : SV 36 Class 1 Sound Calibrator 94 dB & 114 dB
