Mark 10 ESM750 | - Motorized Tension / Compression Test Stand -Force measurement to 750 lbF (3.4 kN) UAE

Brand : Image Brand
Stock Status : Contact us for delivery
Brand : Image Brand
Stock Status : Out of Stock

Part Number : ESM750

ESM1500 and ESM750 single-column force testers are highly configurable solutions for tension and compression measurement applications, with capacities of 1,500 lbF (6.7 kN) and 750 lbF (3.4 kN), respectively. With generous travel and clearance, they are suitable for break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through configurable parameters, such as speed, number of cycles, etc. Up to 50 profiles may be saved and password protected. Crosshead positioning for sample setup is a breeze with available FollowMe®. Using your hand as your guide, push and pull on the load to move the crosshead at a dynamically variable speed. The stands feature a unique modular controller function platform. Functions such as travel measurement, cycling, etc. are offered individually, for ultimate flexibility and value. Collect force and travel data, plot and analyze results, and control test stand motion via MESUR®gauge Plus software. Or, fully control the stand by a PC through a custom application.

Quantity:
Provide Calibration Services
  • Specification
  • Features
  • Catalog
  • Youtube
SIMILAR PRODUCTS
Image Brand

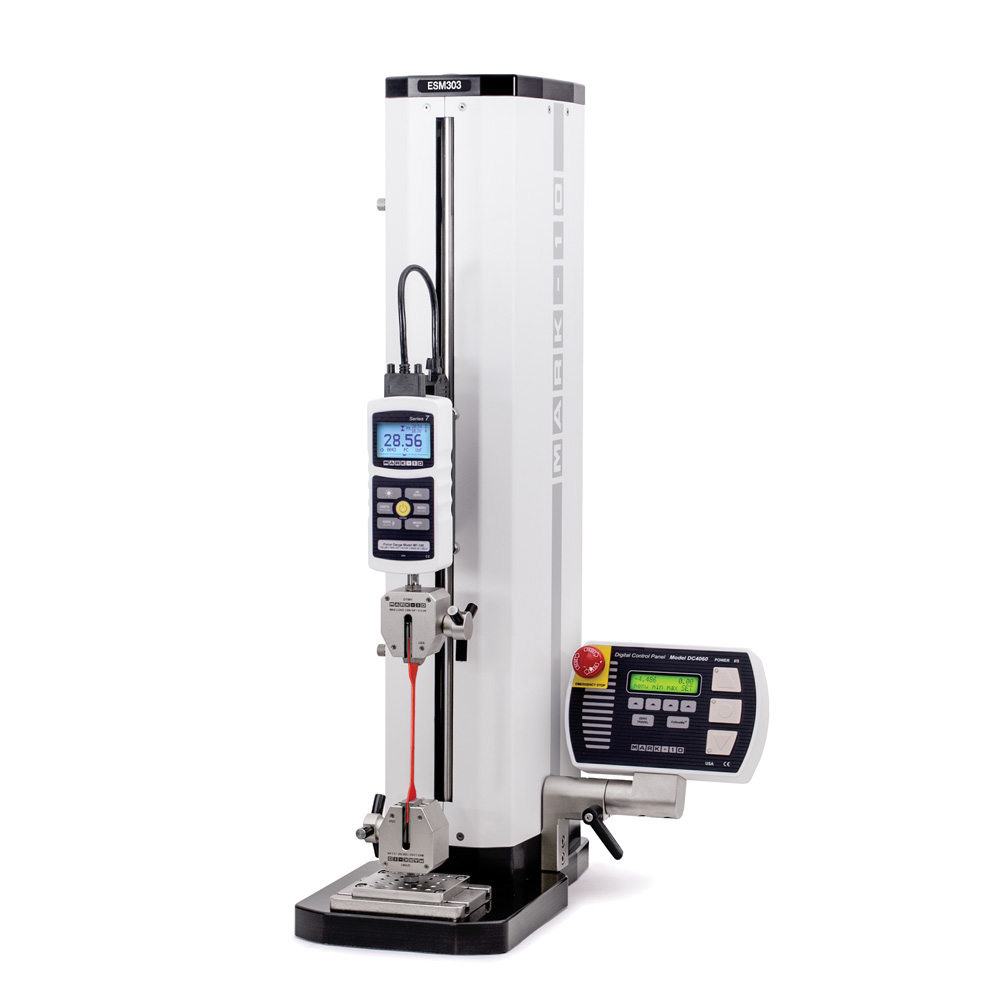

Mark 10 ESM 303- Motorized Tension / Compression Test Stand Stand w/PC Control
